3 X 12 In Nexus Graphite Matte Glazed Porcelain Bullnose - BUILDMYPLACE
3 x 12 in BullnoseNominal size
MatteFinish
PorcelainTrim
9.5 mmThickness

Anatolia · Shop the Nexus collection ›

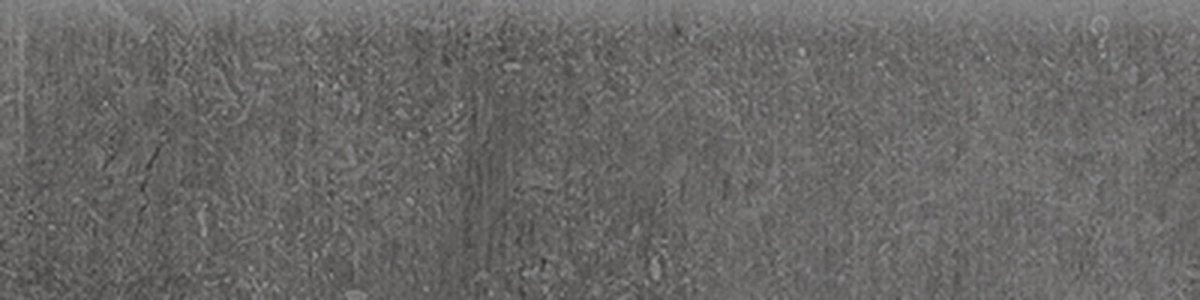

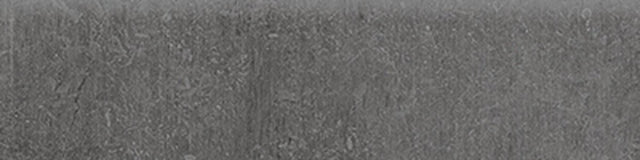

3 X 12 In Nexus Graphite Matte Glazed Porcelain Bullnose

Item 4502-0147-0

4 questions answered

Color: Graphite · 4 colors
MicaMicaIceIceClayClayGraphiteGraphite
Size: 2 sizes
Matching deco & trim · 2 pieces
2 x 2 inMosaic · $14.75/sq ft3 x 12 inBullnose · $6.80/pc
Buy by: the piece
$6.80/ piece

Each piece is 12 in long and covers 1.0 linear ft of edge. $136.00 per case of 20 pieces (20.0 linear ft)

Total: $6.80

4.9522 Google reviews150,000 sq ftLouisville, KY showroom
Have a large project? Ask for a quote
✓
Deliver to your addressShipping calculated at checkout
…
Checking showroom pickup in LouisvilleCall 502-325-0000 to confirm pickup at 2900 Fern Valley Rd.

1450 pieces ship from the manufacturer's warehouse

▶
See it live on a video callA Louisville showroom designer walks you through this tile and the pieces that go with it.

Everything you need to install it

Suggested for this tile: profile height 3/8 inch for its thickness, trowel and mortar for its size, spacers for its edge. Quantities are estimates from your area; your installer has the final say.

Edge profile Jolly Decorative Edge-ProtectionFinishes exposed edges where there is no bullnose. 3/8 inch height suits this tile's 9.5 mm thickness; check it against your setting bed before you order.$33.99 8 ft 2 in length
Spacers Spacer Level System 3.0 mm (1/8") - 1000 Pcs1/8 in (3 mm) spacers for a pressed edge. Your installer may go wider.$16.99 1,000 pieces
Trowel 6 mm X 10 mm - Square Notched Flooring Trowel with Rubber Handle1/4 x 3/8 in notch for tile under 15 in.$13.99

Install materials ship separately from our Louisville, KY warehouse and carry their own shipping rate at checkout. Pick up in store to avoid it.

Quantities are estimates from your area above. Adjust before you add.

Specifications

Size & packaging
Nominal size3 x 12 in Bullnose
Actual piece size11.81 x 2.78 in (300 x 71 mm)
Thickness9.5 mm (0.37 in)
Shape
Weight per piece0.8 lb
Pieces per case20
Case dimensions12.01 x 2.97 x 1.81 in
Weight per case16.5 lb
Length per piece12 in (1.0 linear ft)
Linear feet per case20.0 linear ft
Sold bySingle piece, or case of 20 pieces (20.0 linear ft)
Details
BrandAnatolia
CollectionNexus
ColorGraphite
MaterialPorcelain
FinishMatte
EdgeStraight Edge
LookContemporary
Shade variationV3 · moderate variation
Country of originTürkiye
Item number4502-0147-0
Case SKU4502-0147-0-20PC-MC
Performance & ratings
Water absorption< 0.5%
Frost resistanceFrost resistant
Scratch hardness (MOHS)7
Breaking strength≥450 lbf
Chemical resistanceClass a
Stain resistanceClass a
Thermal shockPass
Crazing resistancePass
GREENGUARDCertified low chemical emissions
What these ratings mean, in plain English
Water absorption
How much water the tile soaks up. Under 0.5% means almost none, which is why porcelain is safe in showers, outdoors and in freezing weather. Natural stone soaks up more, so it is sealed.
Frost resistance
Can it freeze without cracking? "Frost resistant" means yes, so it can go outside through a Kentucky winter.
Slip resistance (DCOF)
How grippy the surface is underfoot. Floors that get wet need 0.42 or more, measured wet. "Dry" means it was only rated for dry floors, so keep it to dry rooms and walls. The letters are the areas it is approved for: ID dry indoor floors, IW indoor floors that get wet, IW+ showers, steam rooms and pool decks, EW outdoor wet areas, O/G around oil and grease.
Scratch hardness (MOHS)
How hard the surface is on a 1 to 10 scale (10 is diamond). 5 or more shrugs off sand, grit and furniture legs; 7 or more is best for busy entries.
PEI wear rating
How well the glaze resists wearing through, 0 to 5. 1 and 2 are for walls, 3 is fine for any room in a home, 4 and 5 are for stores and heavy traffic.
Breaking strength
How much force a tile takes before it snaps. Floor tile needs at least 250 lbf; higher is tougher.
Chemical and stain resistance
How it stands up to cleaners and spills. Class A is the best (no mark left); Class B shows a faint mark only after the harshest chemicals.
Thermal shock and crazing
Pass means sudden hot-to-cold changes did not crack the glaze or leave hairline lines in it.
Shade variation
How much the pieces differ from one another. V1 all alike, V2 slight, V3 noticeable, V4 very different. Marble looks are usually V2 to V4, so pull tiles from several cases as you lay them.
GREENGUARD
Certified for low chemical emissions into indoor air, as listed by the manufacturer.
Installation & use
Where to useInterior Wall, Shower Wall, Exterior Wall, Commercial
Heavy commercialWall
Floor useWall only
Wall useYes
Overage recommended10%

About Nexus Graphite

Nexus Graphite is a 3 x 12 in Bullnose matte glazed porcelain trim piece. Rated for interior wall, shower wall, exterior wall and commercial spaces.

Highlights

  • Finish: Matte
  • Where to use: Interior Wall, Shower Wall, Exterior Wall, Commercial
  • Shade variation: V3, moderate variation
  • Coverage: Sold by the piece; 20 pieces per case

Good to know

  • Low maintenance: clean with a pH-neutral cleaner.
  • Also in Nexus Graphite: 12 x 24 in tile, 13 x 13 in tile, 2 x 2 in mosaic.

Questions

What is bullnose trim used for in tile installation?

Bullnose Trim is used to finish exposed tile edges, outside corners, backsplash ends, shower niches, and wall transitions for a cleaner look.

Does this 3 X 12 In bullnose trim match the tile field?

It is designed to coordinate with matching tile collections. Compare the color, finish, thickness, and series name before ordering.

Can this bullnose trim be used in showers or bathrooms?

Yes, porcelain trim can be used in bathrooms or shower areas when installed with proper waterproofing and tile setting materials.

Is matte, glazed trim better for glossy or matte tile?

Choose the trim finish that matches the field tile. Glossy trim gives a reflective edge, while matte trim creates a softer transition.
